Climate Control with 24V Motor Tech
Engineered for the demanding environments of dairy and greenhouse operations, our controllers deliver fuse-free reliability and high-efficiency power management.
Manual Controls

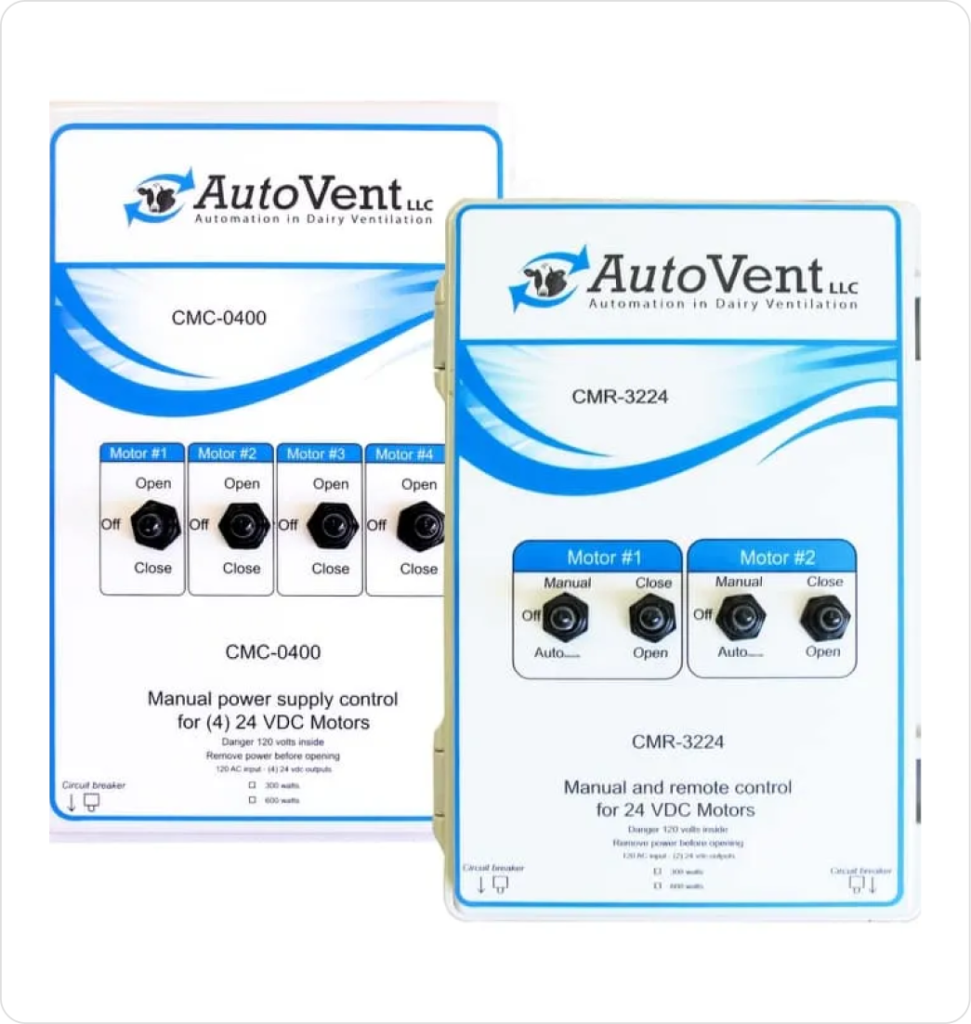

24 Volt Vent Motor Controls
The AutoVent 24 Volt Vent Motor Controls are engineered to provide reliable, high-efficiency power management for demanding agricultural and horticultural environments. Designed specifically for dairy operations and greenhouses, these controllers replace traditional fuses with advanced circuit breaker technology, eliminating the need for manual replacements during extreme weather.
Key Features
Power
300W or 600W Output
Durability
NEMA 4X Sealed Enclosure
Safety
5A to 15A Adjustable Breakers
Versitlity
Works with all 24V DC Motors
Specs
Protection & Reliability
- Circuit Breaker Tech: No fuses to replace in winter.
- Individual Protection: Breakers sized to your needs.
- Adjustable Range: 5, 7.5, 10, or 15-amp selection.
- Rugged Design: High-efficiency, heavy-duty transformer.
Built for the Barn
- NEMA 4X Enclosure: Sealed against dust and moisture.
- Corrosion Proof: Non-metallic ABS will not rust.
- Washdown Ready: Ideal for dairy and greenhouse use.
- Easy Installation: Large, spacious, easy-to-wire box.
Performance & Versatility
- Universal Support: Works with all 24V DC motors.
- Long-Lead Design: Allows for extended motor wiring.
- Power Options: 300 or 600 watt output available.
- Amp Capacity: 10 or 20 amp output configurations.
| Model Number | Motors | Max Amps | Light DEP | Manual Override | Enclosure Size |
|---|---|---|---|---|---|
| CMR-0224 | 1 | 10A | No | Yes | 7" x 11" x 6" |
| CMR-3224 | 2 | 10A | No | Yes | 7" x 11" x 6" |
| CMR-3224-5 | 2 | 20A | No | Yes | 7" x 11" x 6" |
| CMR-3225-T | 2 | 10A | Yes | Yes | 7" x 11" x 6" |
| CMR-0424-5 | 4 | 20A | No | Yes | 11" x 15" x 6" |
| CRR-0224 | 1 | 10A | No | No | 7" x 11" x 6" |
| CRR-3224 | 2 | 10A | No | No | 7" x 11" x 6" |
Selection Tip: All units feature individual circuit breakers (adjustable from 5A to 15A) and high-efficiency transformers, making them the most rugged option for both dairy and greenhouse ventilation.
